Stranded Bare Copper Grounding Conductor, 240 mm2 Size, 2000 m | Alfanar

Stranded Bare Copper Grounding Conductor, 240 mm2 Size, 2000 m | Alfanar

(21 Product Views)

YouMats

Stranded bare copper wire (SDBC), 240 sq mm2 size, produced by Alfanar Company, excellent corrosion resistance, and is not easily broken due to nicks during when terminating.

Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

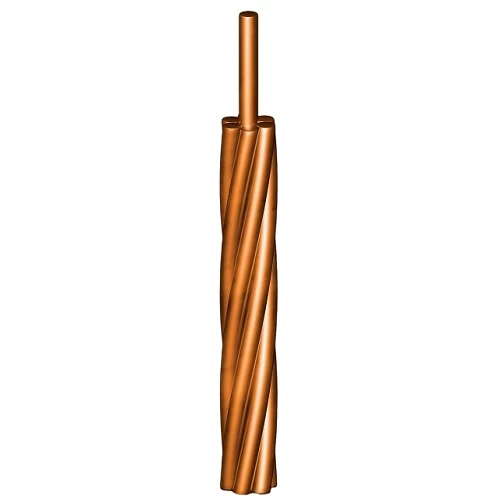

Stranded bare copper conductor (SDBC), produced by Alfanar Company according to IEC 60228 / BS EN 60228 standard. It has the highest electrical conductivity compared to other common commercial metals, excellent corrosion resistance, and is not easily broken due to nicks or cuts during when terminating. suitable for uninsulated hook up, jumpers and grounding conductors in electrical construction, where high conductivity and flexibility are required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Conductor: Stranded Soft-Drawn Copper Conductors
  • Conductor Size (Cross-Sectional Area): 240 mm2
  • Number of Wires x Wires Diameter: 61 x 2.25 mm
  • Approx Overall Diameter: 20.25 mm
  • Approx. Overall Weight: 2120.0 kg / km
  • Max DC Conductor Resistance at 20°C: 0.07540 ohm/km
  • Standard Length: 2000 meter
  • Standard: IEC 60228 / BS EN 60228
