CU/0HLS Flexible Copper Electrical Wire, 240mm2, 450/750V, blue Color, 1000 meter/Drum | RESCAB
(306 Product Views)

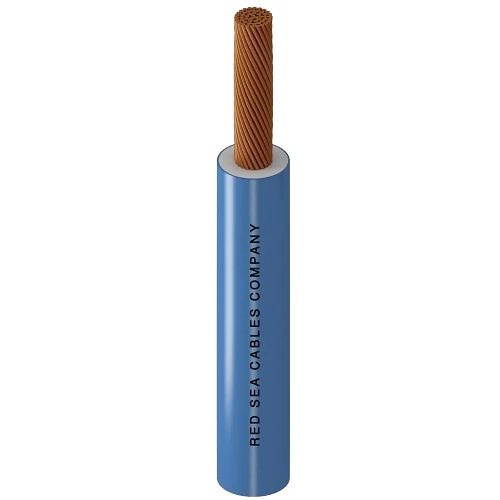

Flexible copper wire (CU/LSHF), 240mm2 size, 450/750 volts, It has high flexibility in bending, which facilitates the installation process in narrow spaces and curves, to ensure excellent electrical conductivity and reduce energy loss, blue color, Red Sea Cables.
Product description
Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90°C
- Conductor Size (Cross-Sectional Area): 240 mm2
- Nominal Insulation Thickness: 2.2 mm
- Approx Overall Diameter: 24.7 mm
- Max DC Conductor Resistance at 20°C: 0.0801 ohm/km
- Standard Length: 1000 meter/Drum
- Insulation Color: blue
- Standard: BS EN 50525-3-41
