CU/LS0H Flexible Copper Electrical Wire, 120mm2, 450/750V, White Color, 1000 M Length | RESCAB

CU/LS0H Flexible Copper Electrical Wire, 120mm2, 450/750V, White Color, 1000 M Length | RESCAB

(371 Product Views)

Flexible copper wire (CU/LSHF), 120mm2 size, 450/750 volts, Red Sea Cables offers you unparalleled engineering quality, reliable performance, and flexibility of use, white color.

in stock

Call Supplier

About Product

Product description

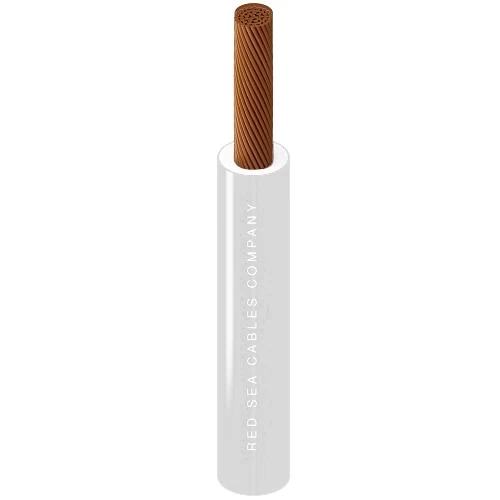

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 120 mm2
Nominal Insulation Thickness: 1.6 mm
Approx Overall Diameter: 17.7 mm
Max DC Conductor Resistance at 20°C: 0.161 ohm/km
Standard Length: 1000 meter/Drum
Insulation Color: White
Standard: BS EN 50525-3-41
