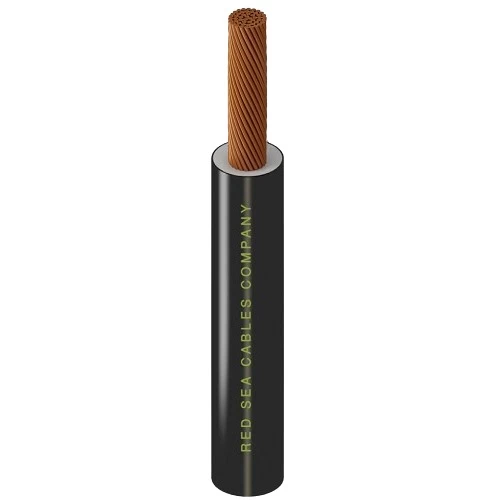

CU/LSHF Flexible Copper Wire, 16mm2, 450/750V, Black Color, 100 yards Length | RESCAB
(219 Product Views)
Flexible electrical copper wire (CU/LSHF), 16mm2 size, 450/750 volts, Black color, Red Sea Cables, offers customized solutions for different needs, making it the ideal choice for large and small projects, and is available in many shapes and colors.
Product description
Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90°C
- Conductor Size (Cross-Sectional Area): 16 mm2
- Nominal Insulation Thickness: 1.0 mm
- Approx Overall Diameter: 7.2 mm
- Max DC Conductor Resistance at 20°C: 1.21 ohm/km
- Standard Length: 100 Yards (91.4 meter) / Coils
- Insulation Color: Black
- Standard: BS EN 50525-3-41
