3×500+240mm Stranded Aluminum Cable PVC Insulated, Low Voltage 0.6/1kV | Alfanar

Product description

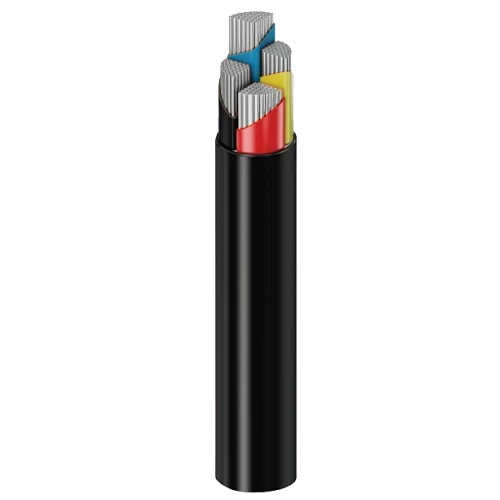

3.5 core stranded aluminum power cable (AL/PVC/PVC), Produced by Al Fanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Aluminum
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Phase Conductor Shape: Sectoral Stranded (sm)
• Neutral Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 3.5 (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): (3×500)+240 mm2
• Max DC Conductor Resistance at 20°C: 0.0606 / 0.1250 ohm/km
• Max AC Conductor Resistance at 70°C: 0.0789 / 0.1533
  ohm/km
• Current Rating Laid in Ground: 392 Ampere
• Current Rating Laid in Ducts: 328 Ampere
• Current Rating Laid in Free Air: 460 Ampere
• Approx Overall Diameter: 73.5 mm
• Weight: 7545 kg/km
• Phase Core Color: (red, yellow, blue, black)
• Standard: IEC 60502-1
