4mm 16 Core Shielded Control Cable, CU/PVC/CTS/PVC, 0.6/1kV | Alfanar

Product description

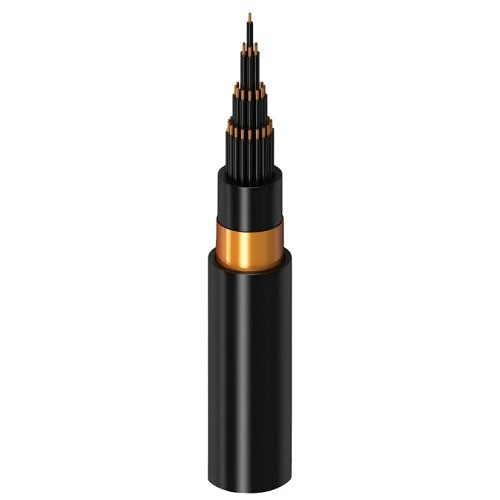

Stranded copper shielded control cable, (CU/PVC/CTS/PVC), Manufactured by Alfanar Company, Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Shielded with Copper Tape (CTS) To create a shield that blocks unwanted electromagnetic waves, preserving signal quality and minimizing the risk of data loss or corruption. Insulated and sheathed with PVC material, which provides excellent insulation around the conductor. The outer sheath also provides additional protection for the cable against shocks, friction, corrosion, and harmful UV rays. In addition, it is highly resistant to water and moisture, making it suitable for indoor and outdoor use. Available in a variety of sizes with highest quality and best prices.

Conductor Type: Copper
Conductor Shape: Round Stranded (rm)
Insulation Material: PVC (Polyvinyl Chloride)
Bedding: PVC
Shielding: Single Copper Tape (CTS)
Outer Jacket: PVC
Voltage: 600/1000 volts
Conductor Size (Cross-Sectional Area): 4 mm2
Number of Cores: 16
Max DC Conductor Resistance at 20°C: 4.6100 ohm/km
Max AC Conductor Resistance at 70°C: 5.5159 ohm/km
Current Rating Laid in Ground: 18 Ampere
Current Rating Laid in Ducts: 13 Ampere
Current Rating Laid in Free Air: 17 Ampere
Approx Overall Diameter: 28.3 mm
Weight: 1315 kg/km
Phase Core Color: Black
Standard: IEC 60502-1
