1.5mm 2 Core LV Electric Cable, 300/500V, Flexible Copper Conductor, PVC Insulation and Sheath | Nohascom

1.5mm 2 Core LV Electric Cable, 300/500V, Flexible Copper Conductor, PVC Insulation and Sheath | Nohascom

(24 Product Views)

YouMats

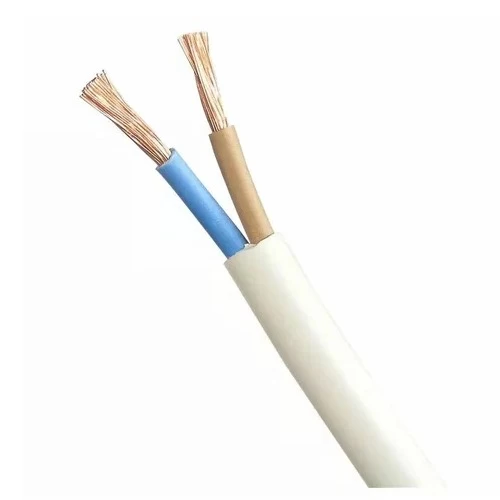

Flexible copper electrical cable (CU/PVC/PVC), 2 core, 1.5mm2 cross-sectional area, low voltage 300/500V, Brown and blue color, thanks to its flexible design and small diameter, this cable can be easily used in tight spaces and limited spaces, from Nohascom Company.

Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

Flexible copper electrical cable (CU/PVC/PVC), Produced by Nohascom Company. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Designed for use with mobile electrical units, including pumps and motors. Ideal for applications requiring highly flexible cables, such as household appliances, office equipment, and prefabricated houses. Available in a variety of sizes and colors with highest quality and best prices.

  • Conductor: Copper
  • Conductor Shape: Flexible Copper Conductor (Class 5) as Per IEC 60228
  • Insulation Material: PVC (Polyvinyl Chloride) 70 °C
  • Outer Sheath: PVC
  • Voltage: 300/500 volts
  • Number of Cores: 2
  • Conductor Size (Cross-Sectional Area): 1.5 mm2
  • Number of Wires: 30
  • Wire Diameter: 0.25 mm
  • Nominal Insulation Thickness: 0.7 mm
  • Nominal Sheath Thickness: 0.8 mm
  • Overall Diameter: 7.6 mm
  • Weight: 95 kg/km
  • Insulation Color: (Brown, Blue)
