Solid Copper Cable, 2×2.5 mm, 0.6/1kV, PVC Insulated | Riyadh Cables

Solid Copper Cable, 2×2.5 mm, 0.6/1kV, PVC Insulated | Riyadh Cables

(539 Product Views)

YouMats

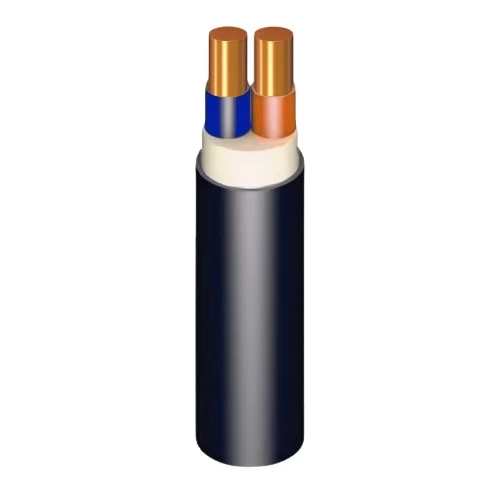

Two core electrical cable (CU/PVC/PVC), solid copper conductor, Low voltage 600/1000V, insulated with two layers of high quality PVC (polyvinyl chloride), produced by Riyadh Cables Company, Size 2.5 mm2.




in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Two core electrical cable (CU/PVC/PVC), solid copper conductor, Produced by Riyadh Cables Company. according to (International Electrotechnical Commission) standard. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.

  • Insulation Material: PVC (Polyvinyl Chloride)
  • Outer Sheath: PVC
  • Voltage : 600/1000 volts
  • Conductor Shape: Solid (re)
  • Number of Cores: 2 Core
  • Conductor Size (Cross-Sectional Area): 2.5 mm2
  • Number of Wires: 1
  • Approx Conductor Diameter: 1.78 mm
  • Nominal Insulation Thickness: 0.8 mm
  • Nominal Sheath Thickness: 1.8 mm
  • Approx Overall Diameter: 13 mm
  • Weight: 225 kg/km
  • Length : 1000 meters
  • Phase Core Colors: (Brown, blue)
  • Standard: IEC 60502-1
