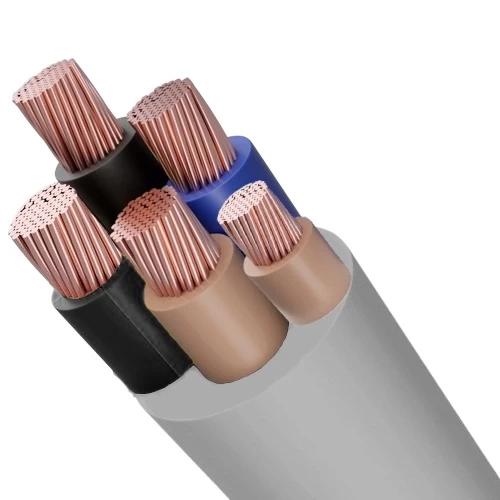

Riyadh Electrical Cable 35mm 300/500 Voltage Rating, 5 Core Stranded Copper, PVC Insulation

Product description

Electrical cable (CU/PVC/PVC), produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Available in a variety of sizes and colors with highest quality and best prices.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 35 mm2
• Number of Wires: 7
• Approx Conductor Diameter: 7.65 mm
• Insulation Thickness: 1.2
• Sheath Thickness: 1.6 mm
• Overall Diameter: 35 mm
• Weight: 2540 kg/km
• Max DC Conductor Resistance at 20°C: 0.524 ohm/km
• Standard Packing Length: 1000 meter
• Insulation Color: (Black, Blue, Brown, Black, Brown)
• Outer Sheath Color: Gray
• Standards: SSA 1450, IEC 60227 (IEC 10)
