PVC Insulated Flexible Copper Electrical Wire, 450/750V, 50mm Size, 100 yards Length | Alfanar

Product description

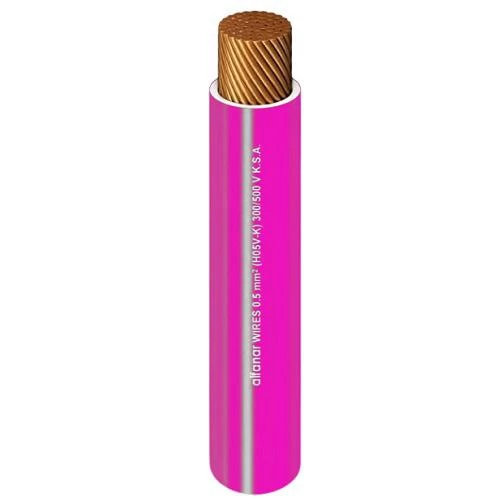

Flexible copper electrical wire (CU/PVC), manufactured by Alfanar, Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Ideal for internal wiring in electric motors, transformers, other electrical appliances, and lighting, suitable for electronic appliances used in measurement, regulation, and control. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor Type: Copper
• Conductor Shape: Flexible
• Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 50 mm2
• Number of Wires : 400
• Conductor Diameter: 0.4 mm
• Max DC Conductor Resistance at 20°C: 0.386 ohm/km
• Nominal Insulation Thickness: 1.4 mm
• Approx Overall Diameter: 12.6 mm
• Weight: 548 kg/km
• Length: Coil 300ft (100 yards), other lengths available on request
• Color: Pink
• Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
