CU/PVC Stranded Copper Wire, 70mm2 Cross Section, 450/750 volts, Blue Color | Jeddah Cables

Product description

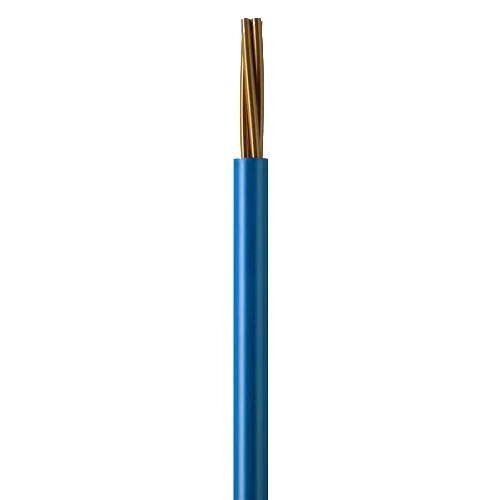

Stranded copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.

• Conductor Material: Copper
• Conductor Shape: Soft Annealed Stranded Wires
• Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 70 mm²
• Nominal Insulation Thickness: 1.4 mm
• Approx Overall Diameter: 12.7 mm
• Weight: 665 kg/km
• Max DC Conductor Resistance at 20°C: 0.268 ohm/km
• Current Rating Laid in Conduits: 196 Ampere
• Current Rating Laid in Free Air: 291 Ampere
• Color: Blue
• Standard: IEC 60227
