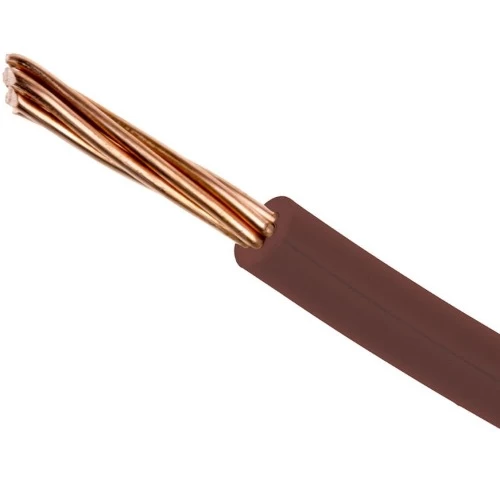

Electric Wire BAHRA 120 mm², 1000 Meter, 450/750V, Stranded Copper, PVC 90°C Insulation, Brown

Product description

Stranded copper electrical wire (CU/PVC), manufactured by Bahra Cables Company according to British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable finds extensive use in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

• Wire Specifications for 120 mm² (1000 Meter/Drum)
• Wire Type: H07V2-R
• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride) 90°C
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 120 mm²
• Number of Wires x Nominal Wire Diameter: 37 X 2.02 mm
• Maximum DC Resistance at 20°C: 0.153 ohm/km
• Nominal Insulation Thickness: 1.6 mm
• Approx Overall Diameter: 17.31 mm
• Current Carrying Capacity (PVC 90°C): 321 Amperes
• Standard Length: 1000 Meter/Drum
• Insulation Color: Brown
• Standards: 60227 IEC 01, BS EN 50525-2-31, and SASO 1320
