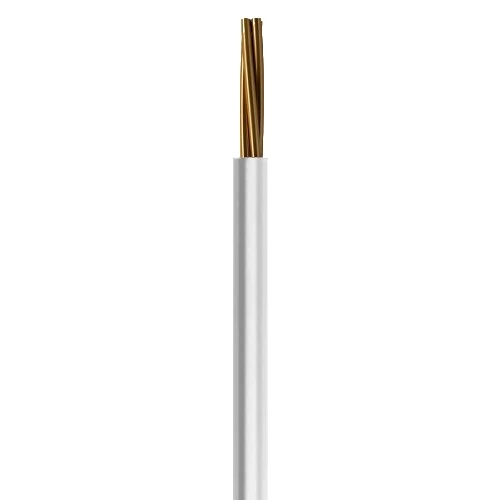

Stranded Electric Wire CU/PVC, 4mm2 Size, 450/750 Rated Voltage, White Color | Jeddah Cables

Product description

Electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor Material: Copper
• Conductor Shape: Soft Annealed Stranded Wires
• Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 4 mm
• Nominal Insulation Thickness: 0.8 mm
• Approx Overall Diameter: 4.12 mm
• Weight: 50 kg/km
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Current Rating Laid in Conduits: 34 Ampere
• Current Rating Laid in Free Air: 50 Ampere
• Color: White
• Standard: IEC 60227
