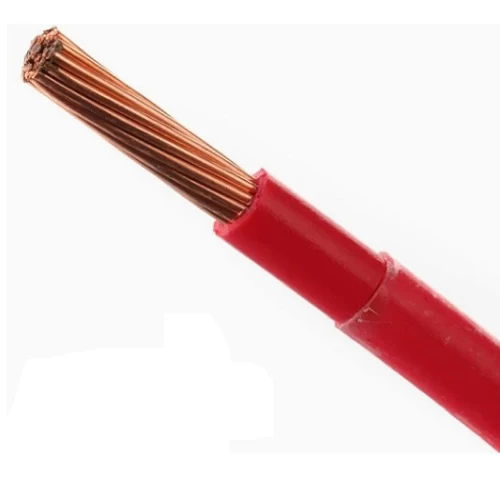

8 AWG THHN/THWN American Wire, 600 Rated Voltage, Stranded Copper PVC Insulated, Nylon Jacketed, Red Color | Asharqiyah Cables

Product description

THHN/THWN electrical american building wire, stranded copper, (CU/ PVC/ NYLON). manufactured by Asharqiyah Cables Company. Insulated with polyvinyl chloride (PVC) and jacketed with nylon for added protection against abrasion and scratches during conduit pulling. It also offers good resistance to oil, gasoline, and chemicals. It is also characterized by its high resistance to heat and water, where It is appropriate for use in dry locations at temperatures not to exceed 90˚C or not to exceed 75°C in wet locations, oil or coolants. THHN/THWN building wires are used in general applications for providing power and lighting in residential, commercial, and industrial buildings. Available in a variety of sizes and colors with highest quality and best prices.

• Wire Type: THHN/THWN Building wire (suitable for dry locations 90°C and wet locations 75°C)
• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride) 105 °C
• Jacket: Nylon
• Voltage: 600 volts
• Size (Cross-sectional area): 8 AWG (8.35 mm2)
• Number of Wires: 19
• Nominal Insulation Thickness: 0.76 mm
• Nylon Jacket Thickness: 0.13 mm
• Overall Diameter: 5.52 mm
• Weight: 95 kg/km
• Current Carrying Capacity (THHN): 50 Ampere
• Current Carrying Capacity (THWN): 55 Ampere
• Standard Packing Length: 500 feet (152.4 meters) In Plastic Spools
• Insulation Color: Red
• Stradards: UL 83, UL 1581
