4sq mm 7 Core Stranded Copper Control Cable, XLPE Insulated, 0.6/1kV, 1000 meter Length | BAHRA

Product description

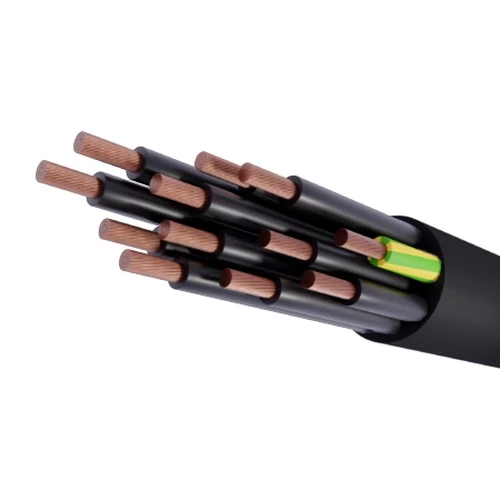

Stranded copper control cable (CU/XLPE/PVC), Manufactured by BAHRA Cables Company In accordance with international standards and specifications to ensure the highest levels of quality and safety. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Insulated with XLPE (cross-linked polyethylene), where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is no risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor: Stranded annealed plain copper conductor class 2 according to IEC 60228
• Insulation Material: XLPE / 90°C (Cross-Linked Polyethylene)
• Outer Jacket: PVC (Polyvinyl Chloride) / ST2 according to IEC 60502-1
• Voltage: 0.6/1kV
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Cores: 7
• Approx Overall Diameter: 15.5 mm
• Weight: 420 kg/km
• Standard Length: 1000 Meter
• Core Color: Black
• Applicable Standards: IEC 60228 & BS EN 60228 / IEC 60502-1 & IEC 60332-1
