240mm2 0.6/1kV Four Core Aluminum Electrical Cable, XLPE Insulation, LS0H Sheath | Alfanar

240mm2 0.6/1kV Four Core Aluminum Electrical Cable, XLPE Insulation, LS0H Sheath | Alfanar

(159 Product Views)

YouMats

Four core aluminum cable, size 240mm2. The cable endures harsh environmental conditions, including moisture and corrosion. Chloride-free, making it environmentally friendly. The LS0H sheath is suitable for environments with low smoke. Produced by Alfanar.

Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

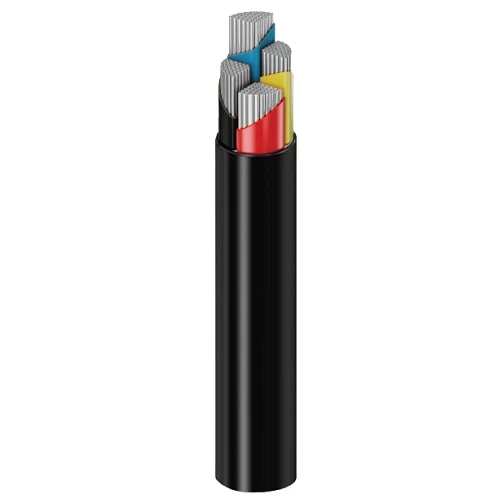

Aluminum electrical cable 4 core, produced by Alfanar  insulated and sheathed. The insulation offers flexibility and durability, making it suitable for a wide range of applications. It withstands high temperatures up to 90°C for extended periods without damage. The cable also endures harsh environmental conditions, such as moisture, corrosion, and chemicals. It is chloride-free, making it environmentally friendly. The outer sheath reduces smoke and toxic fumes in case of fire, making it suitable for use in fixed installations and sensitive areas like schools, hospitals, hotels, and shopping centers. Available in various shapes and sizes, with high quality and competitive prices to suit multiple needs.

  • Conductor Type: Aluminum
  • Conductor Shape: Stranded Circular (sm)
  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Outer Jacket: LSHF (Low Smoke Halogen Free)
  • Voltage: 600/1000 volts
  • Number of Cores: 4
  • Conductor Size (Cross-Sectional Area): 240 mm²
  • Max DC Conductor Resistance at 20°C: 0.1250 ohm/km
  • Max AC Conductor Resistance at 90°C: 0.1634 ohm/km
  • Current Rating Laid in Ground: 575 Ampere
  • Current Rating Laid in Ducts: 415 Ampere
  • Current Rating Laid in Free Air: 526 Ampere
  • Approx Overall Diameter: 39.8 mm
  • Weight: 288 kg/km
  • Phase Core Colors: (Red, Yellow, Blue, Black)
  • Standard: IEC 60502-1
