Riyadh Cable 6mm 3 Core Solid Copper, 0.6/1kV, STA Armed, LSHF Sheath

Riyadh Cable 6mm 3 Core Solid Copper, 0.6/1kV, STA Armed, LSHF Sheath

(314 Product Views)

YouMats

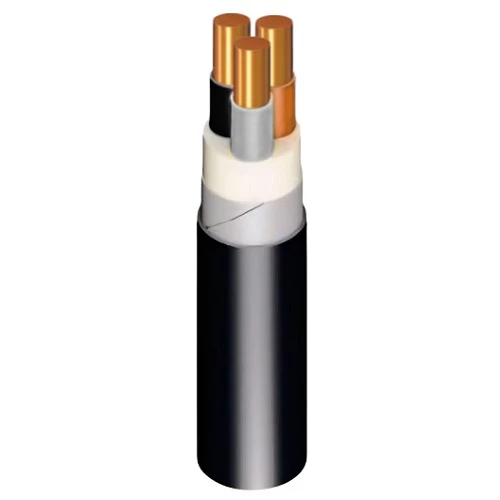

3 core armored electrical cable (CU/XLPE/STA/LSHF), solid copper conductor, It reduces smoke and toxic fumes in the event of a fire, enhancing safety in sensitive environments such as hospitals, data centers and public buildings, produced by Riyadh Cables Company, Size 3x6mm2.




in stock
 Call Supplier
general.mada
general.master_card
general.visa
general.tamara

Product description

3 core armored electrical cable (CU/XLPE/STA/LSHF), solid copper conductor, Produced by Riyadh Cables Company. according to IEC 60502-1 (International Electrotechnical Commission) standard. mmission) standard. Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Outer Sheath: LSHF (Low Smoke Halogen Free)
  • Voltage : 600/1000 volts
  • Conductor Shape: Solid (re)
  • Number of Cores: 3 Core
  • Conductor Size (Cross-Sectional Area): 6 mm2
  • Number of Wires: 1
  • Approx Conductor Diameter: 2.76 mm
  • Nominal Insulation Thickness: 0.7 mm
  • Armoring: Double Steel Tape (STA)
  • Nominal Steel Wire Diameter: 0.2 mm
  • Nominal Sheath Thickness: 1.8 mm
  • Approx Overall Diameter: 16 mm
  • Weight: 475 kg/km
  • Length : 1000 meters
  • Phase Core Colors: (brown, black, grey)
  • Standard: IEC 60502-1
