3×500+240mm 600/1000 volts Stranded Copper Power Cable, XLPE Insulated, PVC Sheathed | Jeddah Cables

Product description

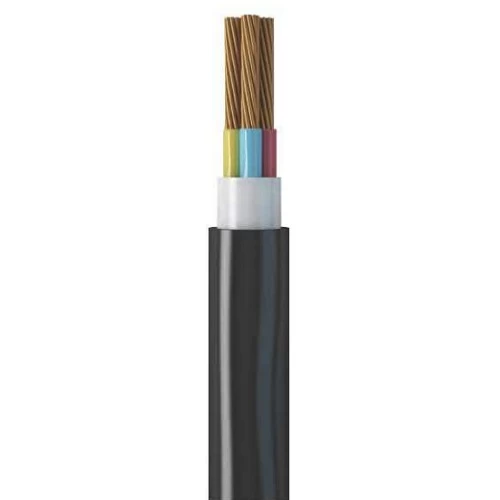

Stranded copper cable (CU/XLPE/PVC), Produced by Jeddah Company, Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Copper
• Conductor Shape: Round Stranded (rm)
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Number of Cores: 3 Core + Neutral
• Conductor Size (Cross-Sectional Area): 3×500+240 mm2
• Nominal Insulation Thickness: 2.2/1.7 mm
• Nominal Sheath Thickness: 3.3 mm
• Approx Overall Diameter: 71.8 mm
• Weight: 17115 kg/km
• Max DC Conductor Resistance at 20°C: 0.0336/0.0754 ohm/km
• Current Rating Laid in Ground: 718 Ampere
• Current Rating Laid in Ducts: 620 Ampere
• Current Rating Laid in Free Air: 819 Ampere
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
