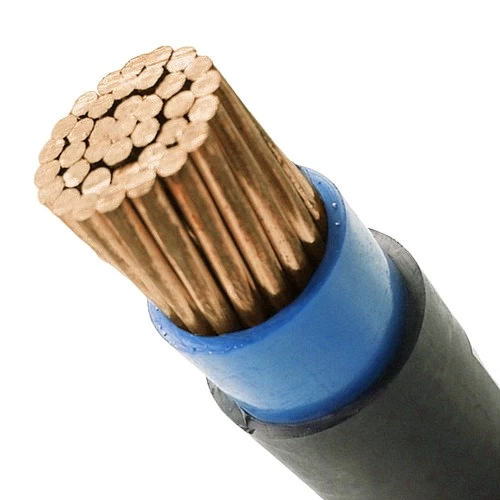

185mm 0.6/1kV 1C Electrical Cable, Stranded Copper Conductor, XLPE Insulation, Blue Color, Length 1000 M | RESCAB

Product description

Stranded copper power cable (CU/XLPE/PVC), produced by Red Sea Cables (RESCAB) Company according to British standard. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor: Stranded Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 185 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.6 mm
• Nominal Sheath Thickness: 1.6 mm
• Approx Overall Diameter: 24 mm
• Max DC Conductor Resistance at 20°C: 0.0991 ohm/km
• Weight: 1900 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Blue
• Standard: BS 5467, 6346 Latest
