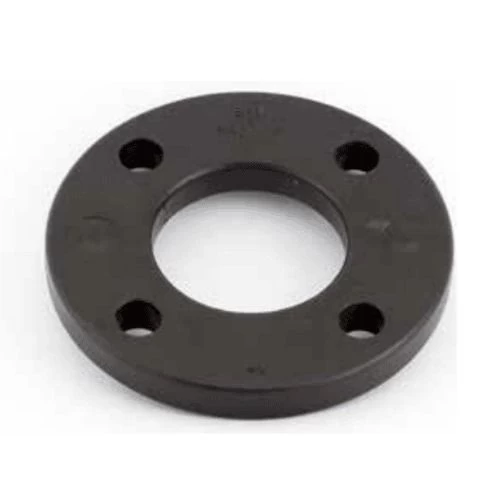

HDPE Flange, Thickness 18mm, Size 110mm, Black color | Union Pipe Factory

Product description

HDPE plastic flange (High-Density Polyethylene) produced by Union Pipe Factory, made of high quality materials. It offers high chemical resistance and excellent corrosion resistance, making it ideal for harsh environments. The flange is also highly durable and strong, allowing to withstand ground pressure and heavy operation without losing performance. it also provides excellent UV resistance, making it suitable for use in different environmental conditions without degrading. It is widely used in hot and cold water supply under high pressure, as well as in sewage systems. Available in a variety of sizes at the best prices.

• Size: 110 mm
• Flange size: 100 mm (4 inch)
• Pitch Circle Diameter (P): 180 mm
• Inner Diameter (I): 125 mm
• Outer Diameter (D): 220 mm
• Thickness (T): 20 mm
• Number of holes × Hole diameter: 4 × 18 mm
• Bolt size: M16
• Pressure: 16 bar
• Standard: BS EN 1092
