HDPE Plastic Flat Flange, 140 mm Size, 250 mm Outer Diameter, pressure 16, Black Color | Union Pipes Factory
(578 Product Views)

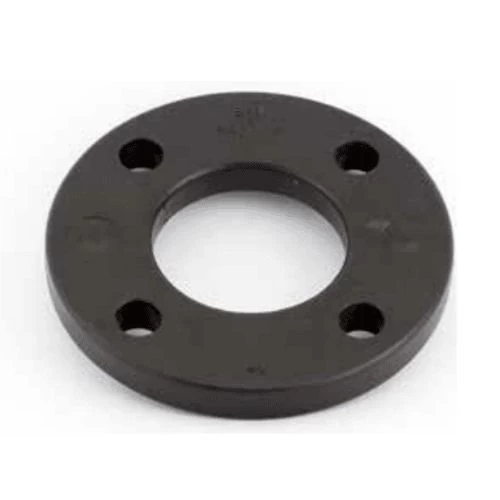

Plastic flat flange HDPE, 140 mm size, 250 mm outer diameter, pressure 16, black color, ideal for use in harsh environments such as hot and cold water supplies under high pressure and sewage systems, produced by Union Pipe Factory.
Product description
HDPE plastic flange (High-Density Polyethylene) produced by Union Pipe Factory, made of high quality materials. It offers high chemical resistance and excellent corrosion resistance, making it ideal for harsh environments. The flange is also highly durable and strong, allowing to withstand ground pressure and heavy operation without losing performance. it also provides excellent UV resistance, making it suitable for use in different environmental conditions without degrading. It is widely used in hot and cold water supply under high pressure, as well as in sewage systems. Available in a variety of sizes at the best prices.
- Size: 140 mm
- Flange size: 125 mm (5 inch)
- Pitch Circle Diameter (P): 210 mm
- Inner Diameter (I): 158 mm
- Outer Diameter (D): 250 mm
- Thickness (T): 22 mm
- Number of holes × Hole diameter: 8x18 mm
- Bolt size: M16
- Pressure: 16 bar
- Standard: BS EN 1092
