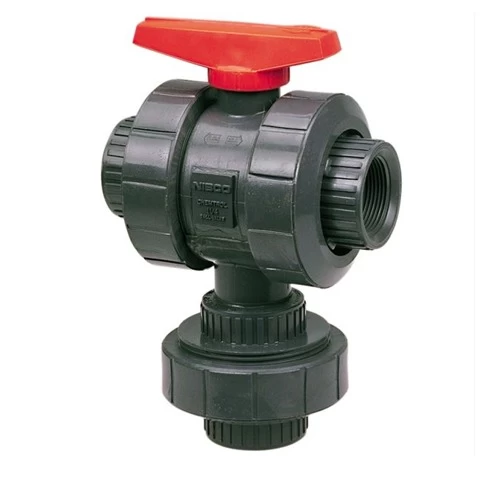

Ball Valve NIBCO Brand PVC and CPVC Size 1 1/4 Inch 3 Way 3 Position

Product description

Ball Valve Material PVC and CPVC°  NIBCO  high quality wide range of pipe fittings manufactured and tested to the highest Saudi and International standards, to ensure this, all products are subject to various rigorous quality control tests in the factory labs around the clock.

•  Size :  1 1/4 Inch
• Rated at 150 psi with non-shock water service at 73°F
• For applications where flow direction and on-off control are needed
• Flow may be directed from the branch center-inlet to one side run-outlet (at the 0° stop position), then to shut-off (at the 90° position), and then to the opposite side run-outlet (at the 180° stop position).
• Flow may be directed from either of the side run-inlet ports to the branch center-outlet port, with shut-off at the mid position (when handle is perpendicular to the body). Cross-contamination of the two inlet streams is prevented at all intermediate positions between the 180° stops.
• (ADJ) externally molded onto the body to indicate the seat carrier end of the valve. Adjustment of this union nut can compensate for wear of PTFE seats, with no production loss to remove valve for internal adjustment.
• Valves are manufactured and assembled without exposure to silicone compounds. Silicone-free lubricant is used to assemble all ball valves.
• Full port design produces minimum flow restriction with the lowe st possible pressure drop for 90° porting.
