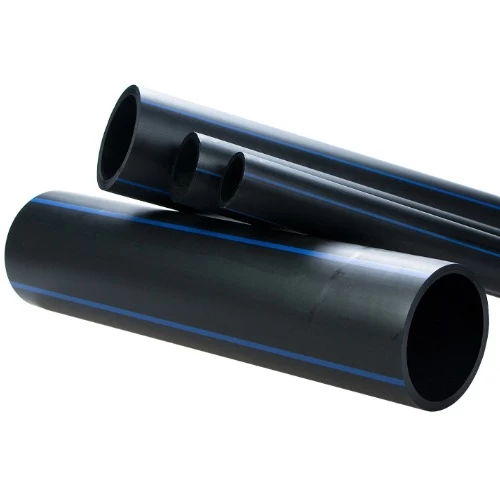

HDPE Pipe Working Pressure 4 Bar [PE 80] Outside Diameter 1200 mm SDR 33 Black Color | Alwasail
(310 Product Views)
HDPE pipes, produced by Al-Wasail Company, black color, outside diameter 1200 mm, material grade PE80, working pressure 4 bar, SDR 33, they are easy to install and used in water supply.
Product description
HDPE pipes, Al-Wasail Company, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter : 1200 mm
- Inside diameter :1126.6 mm
- Thickness : 36.7 mm
- Weight : 134.00 kg/m
- Standard dimensions ratio : SDR 33
- Pipe Series (S) : 16
- Material grade : PE 80
- Pressure : 4 bar
- Minimum Required Strength (MRS) : 8 MPa
- Design safety factor : C=1,25
- Design safety factor : σs = 6.3 MPa
- Color: Black
- Standard : DIN 8074/8075
