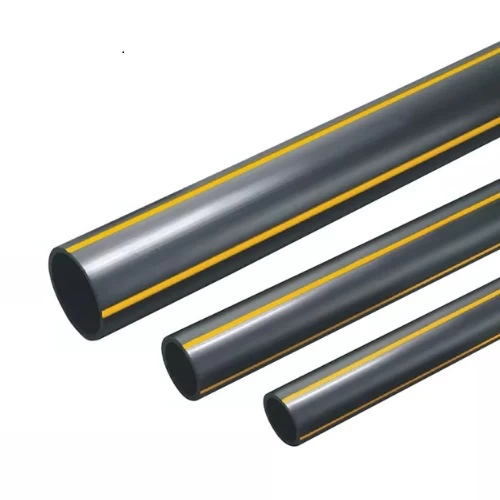

HDPE Plastic Pipe PN 4.8 Bar [PE 80] OD 180 mm Thickness 10.3 mm Color Black with Yellow Stripes | Almona Factory
(491 Product Views)
HDPE pipes, It has a long lifespan that lasts for many years, and has many advantages. It is durable and strong and can withstand ground pressures, material grade PE80, pressure 4.8 bar (SDR 17.6), outer diameter 180 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 180 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 10.3 mm
- Material Weight : 5.51 kg/m
- Minimum Required Strength (MRS): 8 MPa
- Design stress (σs): 4 MPa
- Design safety factor: C=2
- Color: black with yellow stripes
- Length: 12 meters (available in different lengths upon request)
