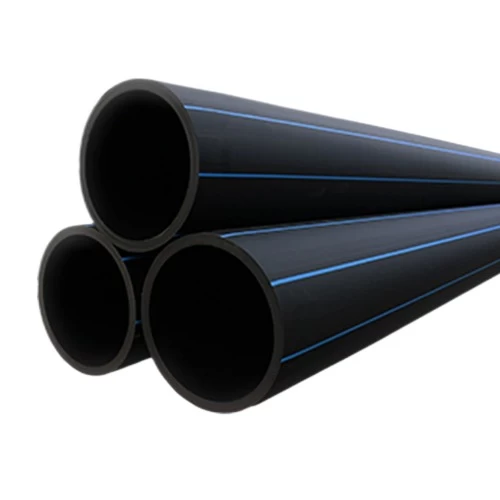

Neproplast HDPE Pipes PE 100 Pressure 20 Bar Outside Diameter 200 mm Thickness 22.4 mm Color Black
(823 Product Views)
HDPE Pipes Neproplast brand , PE100, Pressure 20 bar, Outside diameter 200 mm, Thickness 22.4 mm, Color Black, It is used in transporting potable water and agricultural water. It is made of high-density polyethylene. Among its characteristics are light weight and strength, resistant to bacteria and insects, withstand high pressure, resistant to heat and ultraviolet rays, do not need paint, easy to form according to customer demand, pipes can be connected securely and solidly by electric welding.
Product description
HDPE Pipes Neproplast brand , It is used in transporting potable water and agricultural water. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 200 mm
- Pressure: 20 Bar
- Length: Straight 12 meters. Other lengths are available on customer request
- Thickness: 22.4 mm
- Weight: 12.400 kg / meter
- Color: Black other colors are available on request
- Material: PE100
- Standard dimentions ratio (SDR): 9
- Sigma : 8
- Minimum required strength (MRS) : 10
- Series (S) : 4
