Stranded Bare Copper Grounding Conductor, 120 mm2 Size, 2000 meter | Alfanar

Stranded Bare Copper Grounding Conductor, 120 mm2 Size, 2000 meter | Alfanar

(24 Product Views)

YouMats

Stranded bare copper wire (SDBC), 120 mm2 size, produced by Alfanar Company, Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

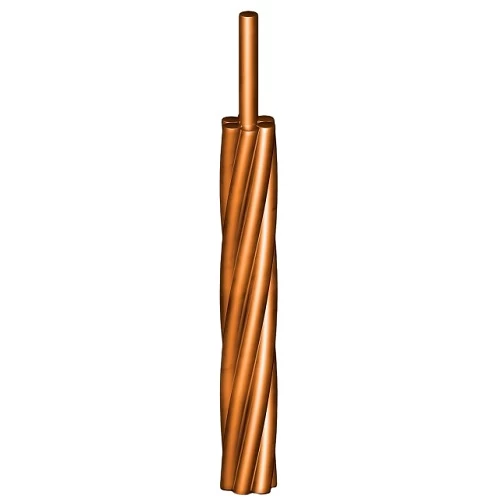

Stranded bare copper conductor (SDBC), produced by  Alfanar Company according to IEC 60228 / BS EN 60228 standard. It has the highest electrical conductivity compared to other common commercial metals, excellent corrosion resistance, and is not easily broken due to nicks or cuts during when terminating. suitable for uninsulated hook up, jumpers and grounding conductors in electrical construction, where high conductivity and flexibility are required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Conductor: Stranded Soft-Drawn Copper Conductors
  • Conductor Size (Cross-Sectional Area): 120 mm2
  • Number of Wires x Wires Diameter: 37 x 2.03 mm
  • Approx Overall Diameter: 14.21 mm
  • Approx. Overall Weight: 1050.0 kg / km
  • Max DC Conductor Resistance at 20°C: 0.15300 ohm/km
  • Standard Length: 2000 meter
  • Standard: IEC 60228 / BS EN 60228
