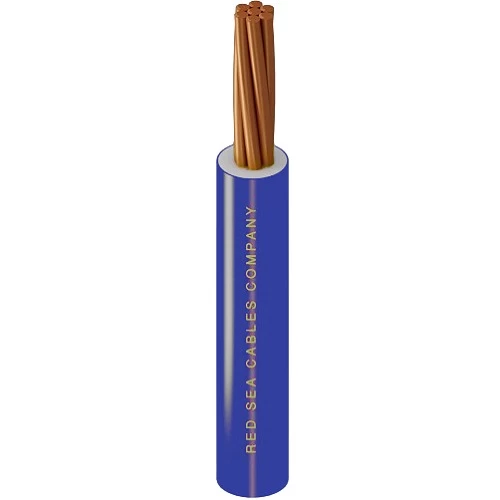

CU/LS0H Stranded Wire, 240mm2, 450/750V, Blue Color, 1000 meter Length | RESCAB

CU/LS0H Stranded Wire, 240mm2, 450/750V, Blue Color, 1000 meter Length | RESCAB

(18 Product Views)

YouMats

Stranded copper wire (CU/LSNH), 240mm2 size, 450/750 volts, From Red Sea Cables, easy to install and compatible with most systems, it is an effective economic solution that combines high performance and attractive design, blue color.

Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Wire Type: H07Z-R
  • Conductor: Stranded Copper (Class 2)
  • Insulation Material: LSHF (Low Smoke Halogen Free)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 240 mm2
  • Nominal Insulation Thickness: 2.2 mm
  • Approx Overall Diameter: 22.8 mm
  • Max DC Conductor Resistance at 20°C: 0.0754 ohm/km
  • Insulation Color: Blue
  • Standard Length: 1000 meter/Drum
  • Standard: BS EN 50525-3-41
