CU/LSHF Flexible Copper Electrical Wire, 240mm2, 450/750V, Red Color, 1000 m | RESCAB

CU/LSHF Flexible Copper Electrical Wire, 240mm2, 450/750V, Red Color, 1000 m | RESCAB

(22 Product Views)

YouMats

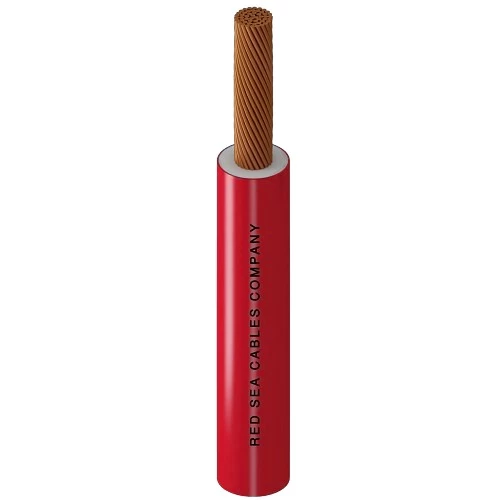

Flexible electrical copper wire (CU/LSHF), 240mm2 size, 450/750 volts, Red Sea Cables, provides a safe working environment that protects workers from a wide range of hazards in various locations, red color.

Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Wire Type: H07Z-K
  • Conductor: Flexible Copper (Class 5)
  • Insulation Material: LSHF (Low Smoke Halogen Free)
  • Voltage: 450/750 volts
  • Max. Temperature: +90°C
  • Conductor Size (Cross-Sectional Area): 240 mm2
  • Nominal Insulation Thickness: 2.2 mm
  • Approx Overall Diameter: 24.7 mm
  • Max DC Conductor Resistance at 20°C: 0.0801 ohm/km
  • Standard Length: 1000 meter/Drum
  • Insulation Color: Red
  • Standard: BS EN 50525-3-41
