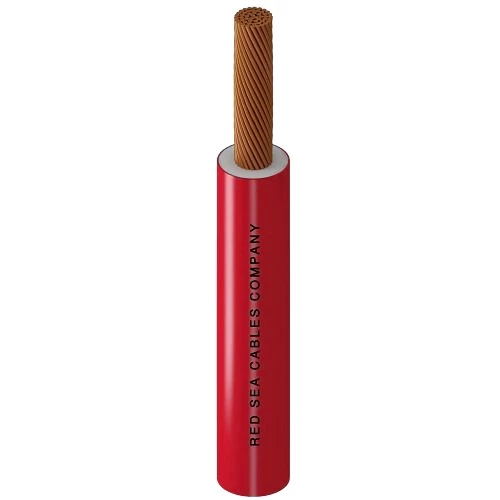

CU/LSHF Flexible Copper Wire, 25mm2, 450/750V, Red Color, Coil Length 100 Yards | RESCAB

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Wire Type: H07Z-K
• Conductor: Flexible Copper (Class 5)
• Insulation Material: LSHF (Low Smoke Halogen Free)
• Voltage: 450/750 volts
• Max. Temperature: +90°C
• Conductor Size (Cross-Sectional Area): 25 mm2
• Nominal Insulation Thickness: 1.2 mm
• Approx Overall Diameter: 8.6 mm
• Max DC Conductor Resistance at 20°C: 0.780 ohm/km
• Standard Length: 100 Yards (91.4 meter) / Coils
• Insulation Color: Red
• Standard: BS EN 50525-3-41
