CU/LSHF Stranded Electrical Wire, 10mm2, 450/750V, Blue Color, Coil Length 100 yards | RESCAB

CU/LSHF Stranded Electrical Wire, 10mm2, 450/750V, Blue Color, Coil Length 100 yards | RESCAB

(24 Product Views)

YouMats

Stranded copper wire (CU/ZHLS), 10mm2 size, 450/750 volts, Blue color, from Red Sea cables, contributes to improving the level of fire protection in buildings, as it reduces the spread of smoke and toxic fumes, saving valuable time for evacuation and rescue.

Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

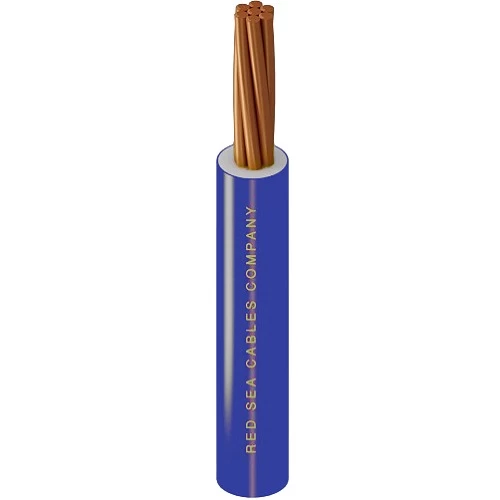

Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Wire Type: H07Z-R
  • Conductor: Stranded Copper (Class 2)
  • Insulation Material: LSHF (Low Smoke Halogen Free)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 10 mm2
  • Nominal Insulation Thickness: 1.0 mm
  • Approx Overall Diameter: 5.7 mm
  • Max DC Conductor Resistance at 20°C: 1.83 ohm/km
  • Insulation Color: Blue
  • Standard Length: 100 Yards (91.4 meter) / Plastic Reels
  • Standard: BS EN 50525-3-41
