CU/LSHF Stranded Wire, 400 mm2, 450/750V, white Color, 500 meters | RESCAB

CU/LSHF Stranded Wire, 400 mm2, 450/750V, white Color, 500 meters | RESCAB

(23 Product Views)

YouMats

Stranded copper electrical wire (CU/LSHF) with a size of 400 mm² and a voltage of 450/750 volts from Red Sea Cables has been carefully designed to suit use in residential buildings and schools, where smoke and acidic gases can pose a risk.


Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

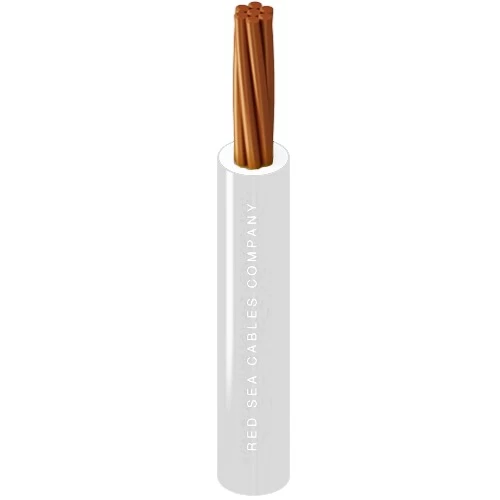

Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company according to BS EN 50525-3-41 standard. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Wire Type: H07Z-R
  • Conductor: Stranded Copper (Class 2)
  • Insulation Material: LSHF (Low Smoke Halogen Free)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 400 mm2
  • Nominal Insulation Thickness: 2.6 mm
  • Approx Overall Diameter: 28.4 mm
  • Max DC Conductor Resistance at 20°C: 0.0470 ohm/km
  • Insulation Color: white
  • Standard Length: 500 meter / Plastic Reels
  • Standard: BS EN 50525-3-41
