CU/LSNH Flexible Copper Wire, 1.5mm2, 450/750V, Red Color, 100 Yards | RESCAB

(262 Product Views)

Flexible electrical copper wire (CU/LSHF), 1.5mm2 size, 450/750 volts, Red Sea Cables, comes in many sizes and colors, and maintains the safety and health of the workforce in various industrial sectors, red color.

in stock

Call Supplier

About Product

Product description

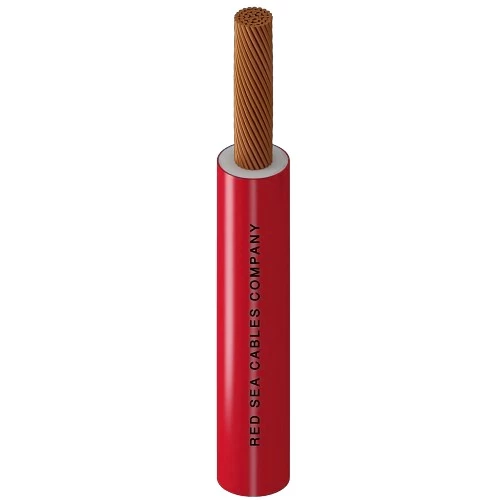

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 1.5 mm2
Nominal Insulation Thickness: 0.7 mm
Approx Overall Diameter: 2.9 mm
Max DC Conductor Resistance at 20°C: 13.3 ohm/km
Standard Length: 100 Yards (91.4 meter) / Coils
Insulation Color: Red
Standard: BS EN 50525-3-41
