CU/LSNH Flexible Copper Wire, 185mm2, 450/750V, blue Color, 1000 M Length | RESCAB
(171 Product Views)
Flexible copper wire (CU/LSHF),185mm2 size, 450/750 volts, Red Sea Cables, resistant to vibrations and shocks to maintain their optimal performance even in difficult conditions, blue color.
Product description

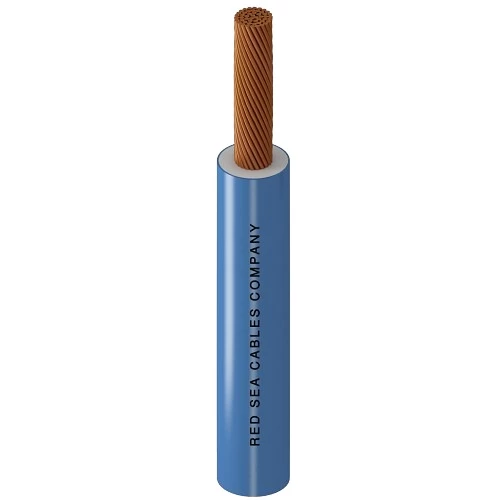

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90°C
- Conductor Size (Cross-Sectional Area): 185 mm2
- Nominal Insulation Thickness: 2.0 mm
- Approx Overall Diameter: 21.8 mm
- Max DC Conductor Resistance at 20°C: 0.106 ohm/km
- Standard Length: 1000 meter/Drum
- Insulation Color: blue
- Standard: BS EN 50525-3-41
