CU/LSZH Flexible Copper Wire, 2.5mm2, 450/750V, Red Color, Coil Length 100 Yards | RESCAB
(201 Product Views)

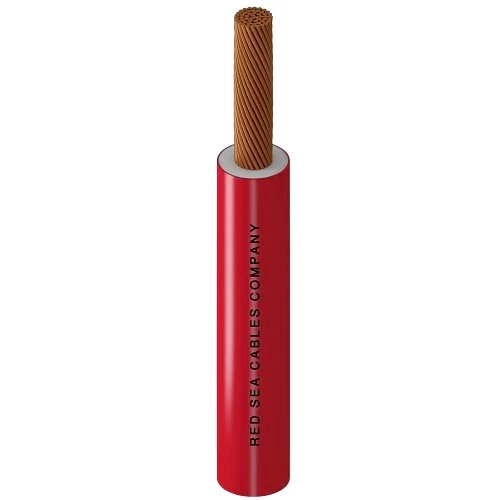

Flexible electrical copper wire (CU/LSHF), 2.5mm2 size, 450/750 volts, With its innovative engineering design, it provides superior performance that contributes to increasing the value of real estate, Red color, Red Sea cables.
Product description
Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-K
- Conductor: Flexible Copper (Class 5)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Max. Temperature: +90°C
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 3.6 mm
- Max DC Conductor Resistance at 20°C: 7.98 ohm/km
- Standard Length: 100 Yards (91.4 meter) / Coils
- Insulation Color: Red
- Standard: BS EN 50525-3-41
