Stranded Single Core Aluminium PVC Cable 240 mm 600/1000V | Riyadh Cables

Product description

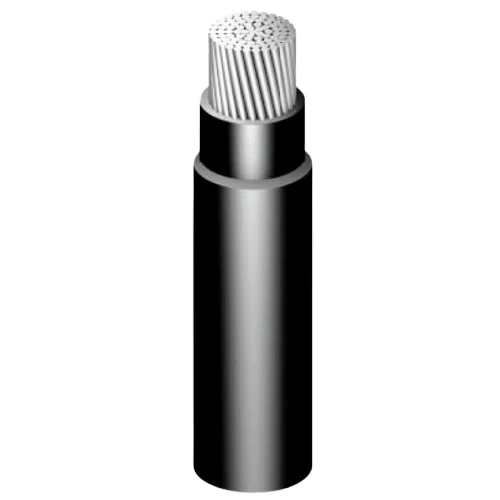

Stranded single core electrical aluminium cable (AL/PVC/PVC), produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 240 mm2
• Number of Wires: 61
• Approx Conductor Diameter: 19.89 mm
• Nominal Insulation Thickness: 2.2 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 28 mm
• Weight: 1150 kg/km
• Cable Length: 1000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
