Stranded Aluminum 1C Electric Cable 300mm 0.6/1kV, AWA Armed, PVC Insulated ,Black Color, 500 m | BAHRA
(294 Product Views)

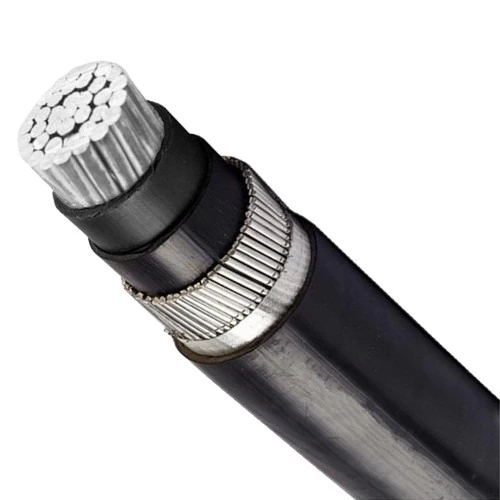

Armored stranded aluminum Electric cable (AL/PVC/AWA/PVC), single core, 300mm2 size conductor, 0.6/1kV, Produced by BAHRA Cables Company, PVC cables are a widely used and effective choice for power transmission in various applications, It prevents harmful UV rays from damaging the cable.
Product description
Armored stranded aluminum power cable (AL/PVC/AWA/PVC), single core, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable. As well as PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminum
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: AWA (Aluminum Wire Armor)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 1
- Conductor Size (Cross-Sectional Area): 300mm2
- Number of wires:37
- Nominal Insulation Thickness: 2.4 mm
- Nominal Aluminum Wire Diameter: 2.0mm
- Nominal Sheath Thickness: 2.0mm
- Approx Overall Diameter: 37mm
- Weight:2050 kg/km
- Standard Length: 500 meters
- Phase Core Color: Black
- Standard: IEC 60502-1
