3x400 + 185sq mm 0.6/1kV, 3.5 Core Electric Cable, Stranded Aluminum Wire, STA Armed, PVC Insulated, Length 250 meter | RESCAB

Product description

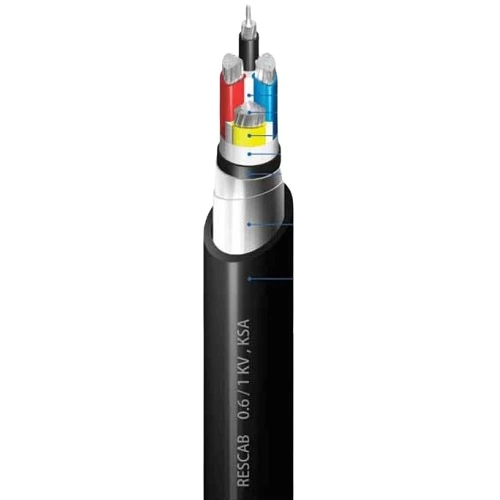

Armoured stranded aluminum power cable (AL/PVC/STA/PVC), produced by Red Sea Cables (RESCAB) Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with layer of galvanized steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.

• Conductor: Stranded Aluminum
• Insulation Material: PVC (Polyvinyl Chloride)
• Armoring: Galvanized Steel Tape (STA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3.5 Core (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 3cx400 mm2 ) + 185mm2
• Number of Phase Wires: 61
• Number of Neutral Wires: 37
• Nominal Insulation Thickness of Phase: 2.6 mm
• Nominal Insulation Thickness of Neutral: 2.0 mm
• Nominal Steel Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 3.3 mm
• Approx Overall Diameter: 77 mm
• Max DC Conductor Resistance at 20°C (Ph): 0.0778 ohm/km
• Max DC Conductor Resistance at 20°C (Ne): 0.164 ohm/km
• Weight: 8010 kg/km
• Standard Length : 250 meters
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
