4mm 10 Core Shielded Control Cable, CU/PVC/CTS/PVC, 0.6/1kV | Alfanar
(478 Product Views)

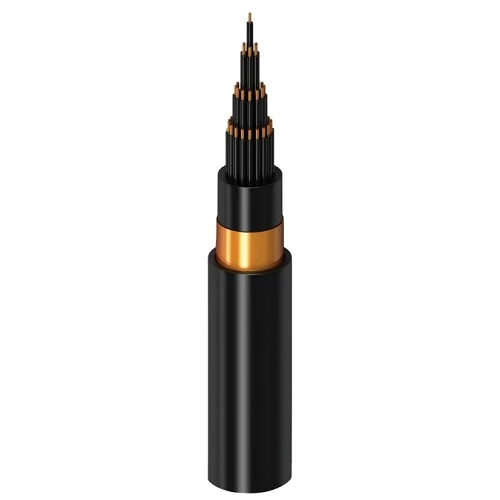

Stranded copper shielded control cable, (CU/PVC/CTS/PVC), 10 core, 4 mm2 cross-section, phase core color black, insulated and sheathed with PVC material, which provides excellent insulation around the conductor, and harmful UV rays, making it suitable for indoor and outdoor use, manufactured by Alfanar Company.
Product description
Stranded copper shielded control cable, (CU/PVC/CTS/PVC), Manufactured by Alfanar Company, Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Shielded with Copper Tape (CTS) To create a shield that blocks unwanted electromagnetic waves, preserving signal quality and minimizing the risk of data loss or corruption. Insulated and sheathed with PVC material, which provides excellent insulation around the conductor. The outer sheath also provides additional protection for the cable against shocks, friction, corrosion, and harmful UV rays. In addition, it is highly resistant to water and moisture, making it suitable for indoor and outdoor use. Available in a variety of sizes with highest quality and best prices.
- Conductor Type: Copper
- Conductor Shape: Round Stranded (rm)
- Insulation Material: PVC (Polyvinyl Chloride)
- Bedding: PVC
- Shielding: Single Copper Tape (CTS)
- Outer Jacket: PVC
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of Cores: 10
- Max DC Conductor Resistance at 20°C: 4.6100 ohm/km
- Max AC Conductor Resistance at 70°C: 5.5159 ohm/km
- Current Rating Laid in Ground: 21 Ampere
- Current Rating Laid in Ducts: 16 Ampere
- Current Rating Laid in Free Air: 20 Ampere
- Approx Overall Diameter: 24.8 mm
- Weight: 910 kg/km
- Phase Core Color: Black
- Standard: IEC 60502-1
