5x2.5mm Copper Control Cable, 600/1000V, Armored with Steel Wires, PVC Insulated and Sheathed | Jeddah Cables
(494 Product Views)

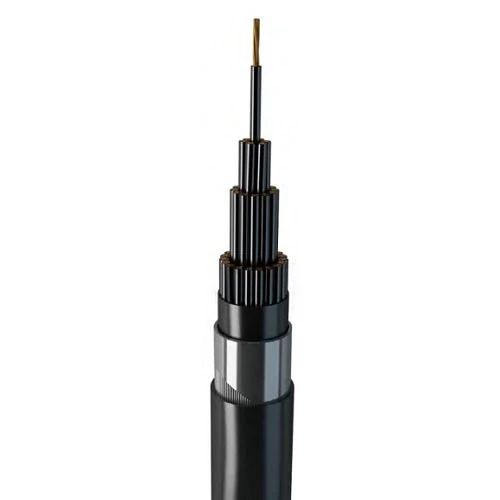

5x2.5 mm2 Copper Control Cable, 600/1000V, armored with steel wires, PVC insulated and sheathed, armored with steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, phase core color black, manufactured by Jeddah Company.
Product description
Stranded copper armored control Cable, (CU/PVC/SWA/PVC), Manufactured by Jeddah Company. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Armored with steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated and sheathed with PVC material, which provides excellent insulation around the conductor. The outer sheath also provides additional protection for the cable against shocks, friction, corrosion, and harmful UV rays. In addition, it is highly resistant to water and moisture, making it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes with highest quality and best prices.
- Conductor Type: Copper
- Voltage: 600/1000 volts
- Conductor Shape: Soft Annealed Stranded Copper Wires
- Insulation Material: PVC Compound Rated 70°C or 85°C (XLPE او LSHF)
- Bedding: PVC (or LSHF)
- Armouring: Steel Wires (SWA)
- Jacketing: PVC Compound (or LSHF)
- Number of Cores: 5
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Nominal Insulation Thickness: 0.8 mm
- Nominal Steel Wire Diameter: 0.9 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18.2 mm
- Weight: 615 kg/km
- Max DC Conductor Resistance at 20°C: 7.41 ohm/km
- Current Rating Laid in Ground: 33 Ampere
- Current Rating Laid in Ducts: 29 Ampere
- Current Rating Laid in Free Air: 25 Ampere
- Core Color: Black
- Standard: IEC 60502-1
