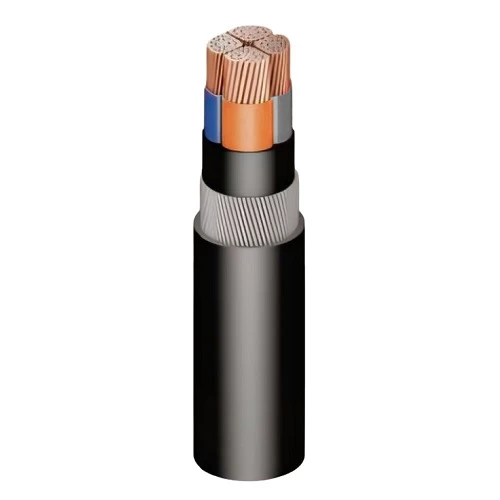

Armored copper cable (CU/PVC/SWA/PVC), 4 core stranded conductors, Conforms to IEC 60502-1, double-layer PVC insulated, size 50 × 4 mm2, Produced by Riyadh Cables Company.




in stock
 Call Supplier
general.mada
general.master_card
general.visa
general.tamara

Product description

Armored copper cable (CU/PVC/SWA/PVC), 4 core stranded conductors, Produced by Riyadh Cables Company, According with IEC 60502-1 (International Electrotechnical Commission) standard. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors. Used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.

  • Insulation : PVC
  • Outer jacket : PVC
  • Voltage : 600/1000 volts
  • Wire Type: Sectoral Stranded
  • Number of Cores: 4
  • Size (cross-sectional area) : 50 mm2
  • Number of wires : 6
  • Thickness of  first insulation layer : 1.4 mm
  • Armour: Steel Wire (SWA)
  • Nominal Steel Wire Diameter : 2 mm
  • Nominal Sheath Thickness : 2.1 mm
  • Approx Overall Diameter : 37 mm
  • Weight : 3625 kg/km
  • Length : 500 meters
  • Core Colors : (Blue, Brown, Black, Gray)
  • Conformity According to International Standard: IEC 60502-1
