Stranded Copper Electric Cable 4x300+150mm 0.6/1kV, PVC Insulation, SWA Armoured, 250 m Length | BAHRA
(508 Product Views)

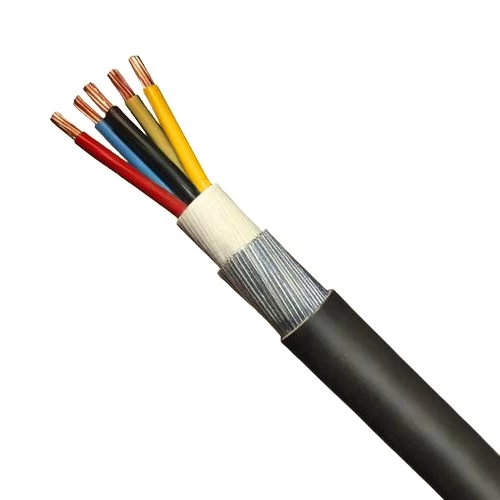

Stranded Copper Electric Cable (CU/PVC/SWA/PVC) 4x300+150mm 0.6/1kV, PVC Insulated, SWA Armoured, 250-meter Length. Delivers high-quality performance in large-scale electrical applications. Produced by BAHRA Cables Company.
Product description
Armored stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4.5 (4 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 4cx300 mm2 ) + 150mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 2.4 mm
- Nominal Insulation Thickness of Neutral: 1.8 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 3.1 mm
- Approx Overall Diameter: 70.5 mm
- Weight: 14761 kg/km
- Standard Length: 250 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Standard: IEC 60502-1
