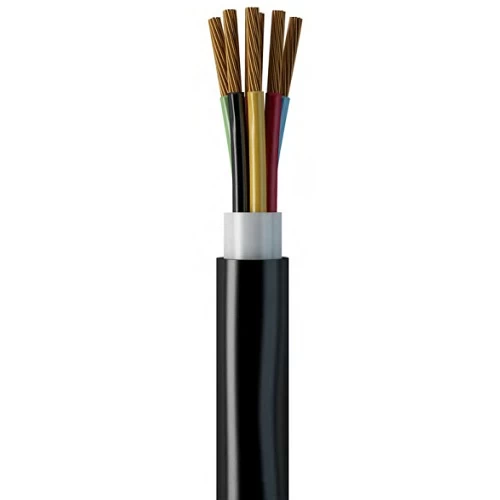

2.5 mm 16 Core Stranded Copper Control Cable, 600/1000V, PVC Insulated, PVC Sheathed | Jeddah Cables
(512 Product Views)
16 Cores stranded copper control cable, (CU/PVC/PVC), 2.5 mm2 cross-section, manufactured by Jeddah company, low voltage 600/1000 volt, available with the highest quality and best prices to suit all needs.
Product description
Stranded Copper Control Cable (CU/PVC/PVC), Manufactured by Jeddah Company. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Insulated and sheathed with PVC material, which provides excellent insulation around the conductor. The outer sheath also provides additional protection for the cable against shocks, friction, corrosion, and harmful UV rays. In addition, it is highly resistant to water and moisture, making it suitable for indoor and outdoor use. Available in a variety of sizes with highest quality and best prices.
- Conductor Type : Copper
- Conductor Shape : Soft Annealed Stranded Copper Wires
- Voltage : 600/1000 volts
- Insulation Material : PVC Compound Rated 70°C or 85°C (XLPE او LSHF)
- Jacketing : PVC Compound (or LSHF)
- Number of Cores : 16
- Conductor Size (Cross-Sectional Area) : 2.5 mm2
- Nominal Insulation Thickness : 0.8 mm
- Nominal Sheath Thickness : 1.8 mm
- Approx Overall Diameter : 20.5 mm
- Weight : 705 kg/km
- Max DC Conductor Resistance at 20°C : 7.41 ohm/km
- Current Rating Laid in Ground : 20 Ampere
- Current Rating Laid in Ducts : 18 Ampere
- Current Rating Laid in Free Air : 15 Ampere
- Standard : IEC 60502-1
