4 Core 1mm Electric Cable, Flexible Copper Wire, 300/500V, PVC Insulation | Nohascom
(324 Product Views)

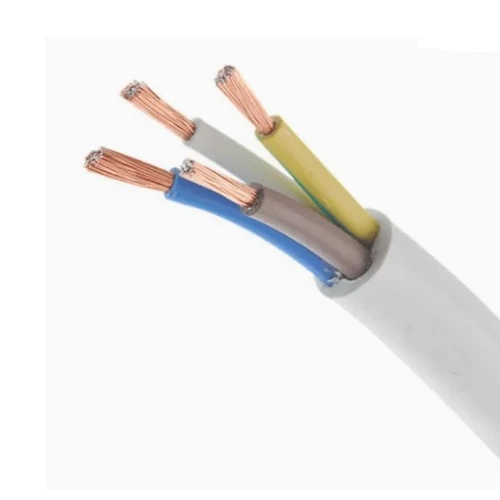

Flexible copper electrical cable (CU/PVC/PVC), 4 core, 1mm2 cross-sectional area, low voltage 300/500V, Suitable for portable devices as its high flexibility makes it ideal for use in pumps and motors, from Nohascom Company, brown, gray, blue, green/yellow.
Product description
Flexible copper electrical cable (CU/PVC/PVC), Produced by Nohascom Company. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Designed for use with mobile electrical units, including pumps and motors. Ideal for applications requiring highly flexible cables, such as household appliances, office equipment, and prefabricated houses. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Flexible Copper Conductor (Class 5) as Per IEC 60228
- Insulation Material: PVC (Polyvinyl Chloride) 70 °C
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 1 mm2
- Number of Wires: 32
- Wire Diameter: 0.2 mm
- Nominal Insulation Thickness: 0.6 mm
- Nominal Sheath Thickness: 0.9 mm
- Overall Diameter: 7.9 mm
- Weight: 105 kg/km
- Insulation Color: (Brown, Grey, Blue, Green/Yellow)
