Jeddah PVC Insulated Stranded Copper Power Cable, Size 3x25+16mm2, 600/1000V
(518 Product Views)

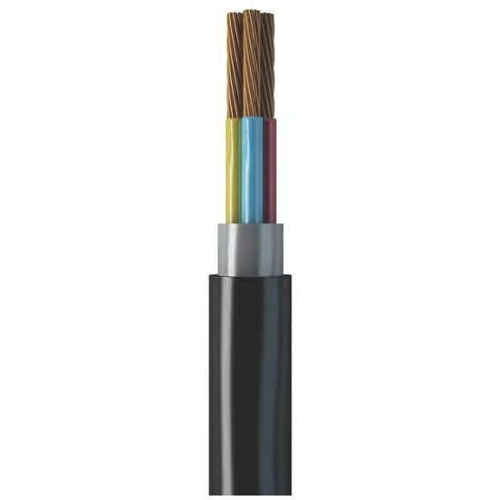

3.5 core stranded copper cable (CU/PVC/PVC), It is the ideal choice for a wide range of electricity and energy transmission applications, produced by Jeddah Company, size 3×25+16 mm2.
Product description
3.5 core stranded copper cable (CU/PVC/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: PVC Compound (Polyvinyl Chloride)
- Bedding: PVC Compound (or LSHF or PE)
- Jacketing: PVC Compound (or LSHF or PE)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): 3×25+16 mm2
- Nominal Insulation Thickness: 1.2/1 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 25.7 mm
- Weight: 1455 kg/km
- Max DC Conductor Resistance at 20°C: 0.727 / 1.15 ohm/km
- Current Rating Laid in Ground: 138 Ampere
- Current Rating Laid in Ducts: 112 Ampere
- Current Rating Laid in Free Air: 119 Ampere
- Phase Core Colors: (red, yellow, blue, black)
- Standard: IEC 60502-1
