copper power cable 25 mm

25mm 4 Core Cable Stranded Copper 600/1000 V, PVC Insulated | Riyadh Cables

(2447 Product Views)

YouMats

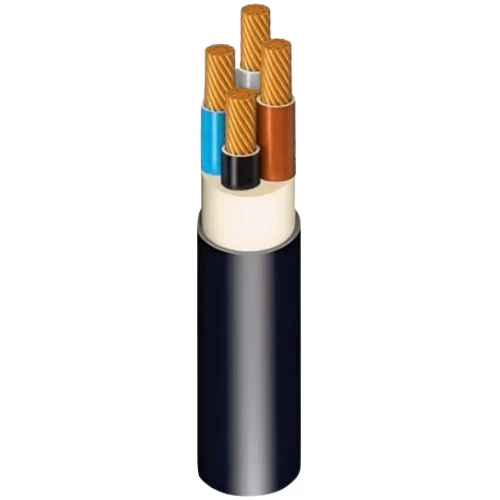

Four core electrical stranded copper cable (CU/PVC/PVC), Available in all sizes and colors with the highest quality and best prices, it is used to connect electrical current in various home and commercial applications, Size 25×4 mm2, produced by Riyadh Cables Company.



in stock
 Call Supplier
general.mada
general.master_card
general.visa
general.tamara

Product description

Four core electrical stranded copper cable (CU/PVC/PVC), Produced by Riyadh Cables Company. According with IEC 60502-1 (International Electrotechnical Commission) standard. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.

  • Insulation Material: PVC (Polyvinyl Chloride)
  • Outer jacket : PVC
  • Voltage : 600/1000 volts
  • Wire Type: Round Stranded (rm)
  • Number of Cores: 4 Core
  • Size (cross-sectional area) : 25 mm2
  • Number of wires : 7
  • Approx conductor diameter : 6.3 mm
  • Thickness of  first insulation layer : 1.2 mm
  • Thickness of outer jacket layer : 1.8 mm
  • Approx overall diameter : 28 mm
  • Weight : 1600 kg/km
  • Length : 1000 meters
  • Phase Core Color: Blue, Brown, Black, Gray
  • Conformity According to International Standard: IEC 60502-1
