35mm Five Core Electric Cable 300/500V, Stranded Copper Conductor, PVC Insulated and Sheathed | Nohascom

35mm Five Core Electric Cable 300/500V, Stranded Copper Conductor, PVC Insulated and Sheathed | Nohascom

(34 Product Views)

YouMats

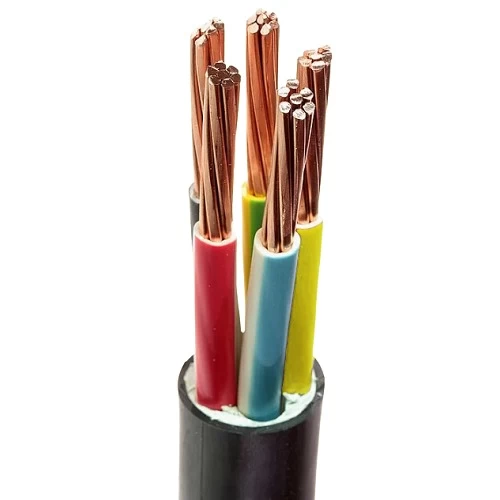

Stranded copper electrical cable (CU/PVC/PVC), 5 core, 35mm2 cross-sectional area, low voltage 300/500V, From Nohascom Company, reduces the risk of fire spread in the event of an electrical short circuit, easy to install in narrow and curved spaces, red, yellow, blue, black, yellow/green.

Shop and Split Your Payments in 4 | Flexible Payments
in stock
 Call Supplier
general.mada
general.master_card
general.visa

Product description

Stranded copper electrical cable (CU/PVC/PVC), Produced by Nohascom Factory. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Suitable for industrial and residential wiring applications. Usable in open environments both indoors and outdoors, as well as for powering electrical units and equipment in various projects. Available in a variety of sizes and colors with highest quality and best prices.

  • Conductor: Copper
  • Conductor Shape: Stranded
  • Insulation Material: PVC (Polyvinyl Chloride) 70 °C
  • Outer Sheath: PVC
  • Voltage: 300/500 volts
  • Number of Cores: 5
  • Conductor Size (Cross-Sectional Area): 35 mm2
  • Number of Wires: 7
  • Wire Diameter: 2.57 mm
  • Nominal Insulation Thickness: 1.2
  • Thickness of Inner Covering: 1.2 mm
  • Nominal Sheath Thickness: 1.6 mm
  • Overall Diameter: 33.5 mm
  • Weight: 2305 kg/k
  • Insulation Color: (Red, Yellow, Blue, Black, Yellow/Green)
  • Standard: SASO IEC 60227-4
