4mm Flexible Copper Wire, 450/750 Rated Voltage, Coil Length 300 feet, PVC Insulated, Gray | Nohascom Factory

4mm Flexible Copper Wire, 450/750 Rated Voltage, Coil Length 300 feet, PVC Insulated, Gray | Nohascom Factory

(344 Product Views)

YouMats

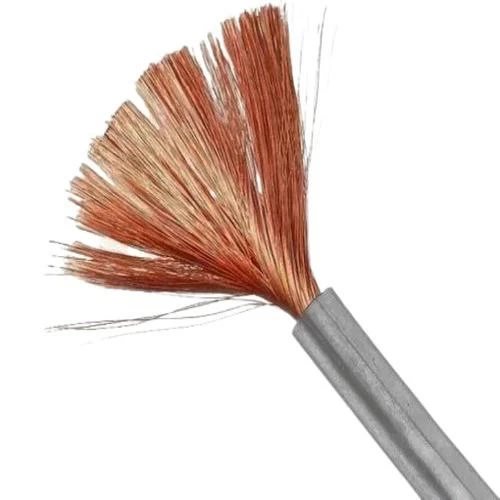

Flexible copper electrical wire (CU/PVC), 4 mm2 cross-sectional area, 450/750 volts, insulation material polyvinyl chloride (PVC), phase core color gray, suitable for internal wiring in electric motors, transformers, manufactured by Nohascom Factory International Co.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Flexible copper electrical wire (CU/PVC), manufactured by Nohascom Factory International Co. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Conductor: Flexible Copper
  • Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 4 mm2
  • Number of Wires : 60
  • Conductor Diameter: 0.30 mm
  • Max DC Conductor Resistance at 20°C: 4.95 ohm/km
  • Nominal Insulation Thickness: 0.8 mm
  • Approx Overall Diameter: 4.2 mm
  • Weight: 50 kg/km
  • Length: Available in standard length (lengths available on customized request)
  • Color: Gray
  • Standard: IEC 60227
