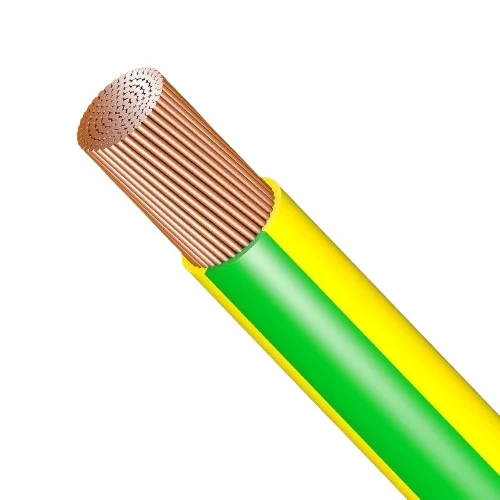

Flexible Copper Earthing Electrical Wire 16mm2 450/750V, PVC Insulation, Green/Yellow | Riyadh Cables
(137 Product Views)
Flexible copper earthing electrical wire, 16mm2 size, 450/750V, PVC insulation, providing excellent protection against corrosion and electrical leakage, with high durability, making it ideal for high-voltage applications. Green/Yellow color. Produced by Riyadh Cables.
Product description
- Conductor: Flexible Copper
- Wire Type: (H07V-K)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 16 mm²
- Number of Wires in Conductor: 118
- Wire Diameter: 0.40 mm
- Conductor Diameter: 6.3 mm
- Nominal Insulation Thickness: 1.0 mm
- Overall Diameter: 8.1 mm
- Weight: 195 kg/km
- Maximum DC Resistance at 20°C: 1.21 ohm/km
- Length: 100m coil (±5%)
- Color: Yellow/Green
- Standards: SSA 1320, IEC 60227 & BS 6004
