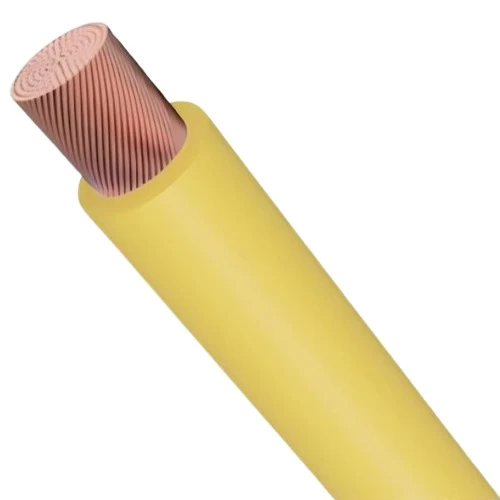

Flexible Copper Electrical Wire 10 mm, 450/750Volts, PVC Insulation (90°C), Yellow Color | Asharqiyah Cables
(301 Product Views)
Flexible Copper Electric Wire 10 mm, 450/750V, providing excellent protection against electrical leakage due to its PVC insulation, with high resistance to corrosion and moisture. Used in heavy industrial systems. Yellow color produced by Asharqiyah Cables.
Product description
Flexible copper electrical wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (90°C), offering a cost-effective, reliable, and durable solution. The insulation provides excellent protection around the conductor, preventing electric current leakage, and offers protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations in conduits, ducts, or similar closed systems. It can be used in lighting fittings, switch and control devices, control panels, inside appliances, and similar applications. Available in various colors and sizes with the highest quality and best prices to suit diverse applications and needs.
- Wire Type: (H07V2-K)
- Conductor: Flexible Copper (Class 5)
- Insulation Material: PVC (90°C)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm²
- Nominal Insulation Thickness: 1.00 mm
- Approx Overall Diameter: 6.10 mm
- Weight: 115 kg/km
- Maximum DC Resistance at 20°C: ≤1.91 ohm/km
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: Yellow
- Standards: IEC 60227-3, BS EN 50525-2-31
