0.5 sq mm Single Core Electric Wire 600/1000 V, Solid Copper, Heat Resistant PVC 105°C insulated, White | Asharqiyah Cables
(96 Product Views)

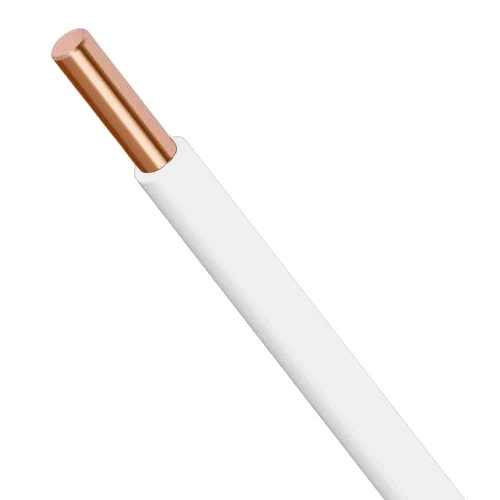

Solid copper wire, 0.5 sq mm, 600/1000 volts, insulated with PVC providing strong resistance against shocks and abrasion. Offers excellent protection against electrical leakage and environmental factors, making it suitable for lighting and electrical device connections. White color produced by Asharqiyah Cables.
Product description
- Conductor: Solid Copper (Class 1)
- Insulation Material: Heat Resistant PVC (105°C)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 0.50 mm²
- Nominal Insulation Thickness: 0.80 mm
- Approx Diameter: 2.40 mm
- Weight: 10 kg/km
- Maximum DC Resistance at 20°C: ≤36.0 ohm/km
- Suggested Current Capacity: 4 A
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: White
- Standards: BS 6231
